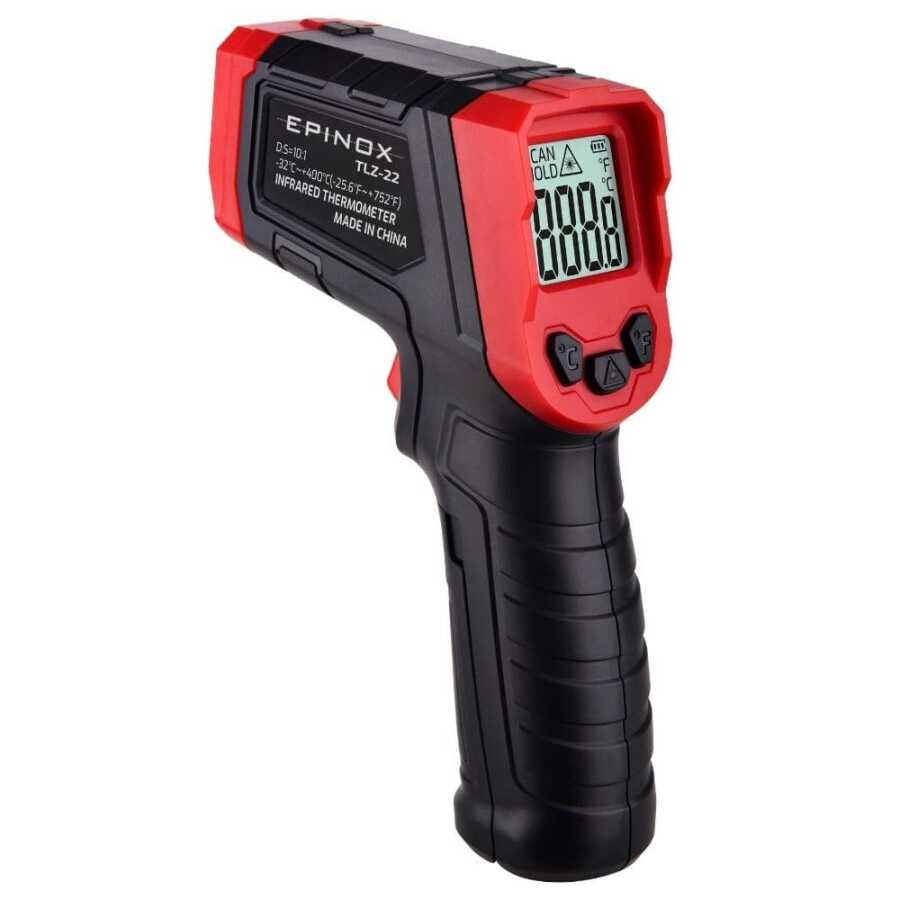

Infrared Thermometer (Tlz-22)

TLZ-22 is a professional IR thermometer that detects instant surface temperature without contact by measuring the amount of infrared energy emitted from the target surface. It can be safely used in industrial inspection, kitchens, HVAC systems, electrical panels, and vehicle maintenance applications.

With its 650nm wavelength laser targeting system (Class 3, max. 5mW), the measurement point is directly indicated on the display. Thanks to its 10:1 optical resolution, accurate measurements can be taken from a distance.

The fixed emissivity value of 0.95 is optimized for most matte surfaces. The automatic shut-off feature, activated after approximately 15 seconds, extends battery life. Powered by 2×AAA batteries, the device has a lightweight and ergonomic design with a weight of approximately 103g.

Key Features:

• Non-contact, instant surface temperature measurement
• Laser targeting system (650nm, Class 3)
• Wide measurement range: -32°C ~ +550°C
• 10:1 optical resolution
• Response time under 500ms
• Automatic shut-off (~15 seconds)
• CE and FCC certified
• Durable construction tested for 1m drop resistance

Technical Specifications:

• Measurement Range : -32°C ~ +400°C / -32°C ~ +550°C
• Accuracy (>0°C) : ±(%1.5 + 1.5°C)
• Accuracy (≤0°C) : ±3°C
• Response Time : <500ms (%95 reading)
• Spectral Response : 8μm ~ 14μm
• Optical Resolution : 10:1
• Emissivity : 0.95 (Fixed)
• Repeatability : 1% of reading or 1°C
• Laser : 650nm, Class 3, <5mW
• Operating Temperature : 0°C ~ 50°C (32°F ~ 122°F)
• Storage Temperature : -20°C ~ 60°C (-4°F ~ 140°F)
• Operating Humidity : <80% relative humidity (non-condensing)
• Power Supply : 2 × 1.5V AAA (R03/LR03)
• Weight : ~103g (excluding batteries)
• Dimensions : 148 × 95 × 39mm
• Display Size : 23 × 23mm (4 digits)
• Automatic Shut-off : ~15 seconds
• Drop Test : 1m
• Certifications : CE (EN 61326-1), FCC Part 15 Subpart B

Safety Note: Do not look directly into the laser beam; do not aim it through optical instruments (binoculars, telescopes, microscopes). Measurement errors may occur in strong electromagnetic fields; in such cases, leave the area and use the device again once it has returned to normal operation. For accurate measurements, allow the device to acclimate to the environment for at least 30 minutes before use.

Carton Dimensions : 53x40x27 cm
